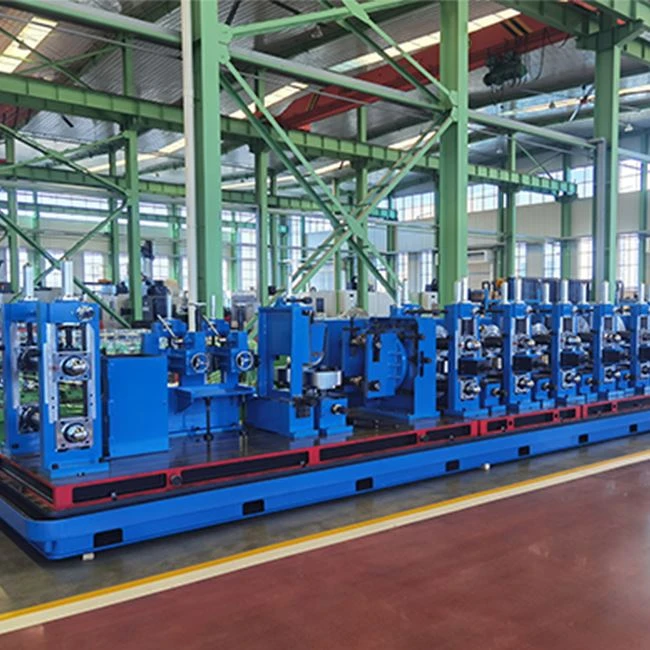

ERW Pipe Production Line

ERW Pipe Production Line is a continuous mill that forms steel strip/coil into a tube and welds the seam using high-frequency electric resistance welding for fast, consistent production of small-to-medium diameter pipes. For procurement teams, what matters is whether the line can hold speed, tolerance, and acceptance after commissioning-not just run a demo pipe. At Octal Pipe, we configure the complete Pipe Production Line as a matched system from coil prep to testing & finishing, so output is real and repeatable.

An ERW line looks simple on paper: coil → forming → HF welding → sizing → cut-off. In real plants, the problems buyers face are more practical:

• coil changes cause stops and parameter drift
• strip edges and forming alignment create hidden scrap
• weld seam looks OK, but acceptance fails later
• sizing and cut-off don't match the mill speed, so output drops

That's why Octal Pipe designs the ERW tube mill line as a matched chain, with each station sized to support your OD/thickness window, product mix, and acceptance workflow:

• Coil-to-strip preparation (slitting + leveling + accumulator + strip joining) to keep feeding stable and reduce speed drops.
• Forming strategy selection (conventional forming, FFX, or DFT) based on whether your priority is wide size coverage, faster changeovers, or square/rectangular tube output.
• Solid-state HF induction welding configured around your thickness window and target speed, so you don't have to slow down just to keep seam consistency.
• Bead removal + cooling + optional online normalizing to control seam finish and support tougher project requirements.
• Sizing and straightening tuned for repeatable geometry at your planned line speed, not only at low-speed trials.
• Cut-to-length and finishing (flying cut-off, end finishing options, stacking/packing) designed to match real dispatch needs.

To make procurement easier, we also define the line in clear, quote-ready scope modules-so you know what's included, what's optional, and what directly impacts acceptance.

1. Slitting Line (coil-to-strip preparation)

Octal Pipe supplies the slitting section as a "weld-quality" front end-not just cutting coils. We focus on strip width stability and edge condition control, because ERW seam stability starts here. Typical scope includes coil car/uncoiler, slitting head, tension control, scrap winding, and strip rewind/recoil options. For projects with tighter acceptance requirements, we can configure edge-conditioning to reduce burr-related seam issues and improve forming consistency.

2. Uncoiler + Leveling + Shear & Welder + Accumulator

We designs this section to keep continuous feeding stable, because frequent stops are what cause HF welding parameters to drift in real production. The package is configured as a matched set: uncoiling with stable tension, leveling for flatness, shear & welder for strip joining, and an accumulator sized to your speed plan. The practical value for buyers is simple: steadier line rhythm, fewer start/stop defects, and faster ramp-up to stable output.

3. Forming Mill (roll-forming to open-seam round profile)

Octal Pipe configures the forming mill around Vee geometry stability at the weld point-this is where many mills lose yield silently. Depending on your product mix, we can supply conventional forming or integrate options like FFX/DFT (when square/rectangular output or changeover efficiency is a priority). Roll set design, pass sequence, and alignment control are configured to hold edge alignment and reduce "hidden mismatch" that later becomes weld repair.

4. Solid-state HF Welder (HF induction welding)

We uses solid-state HF welding as the core welding solution, configured by your OD/thickness window and target speed. What we optimize is not just power selection, but the full welding stability package: heat input control range, guidance/impeder arrangement, and squeeze behavior at the weld point-so you can run speed without sacrificing seam consistency. If your project needs it, we can add weld monitoring points that help your team troubleshoot faster during commissioning.

5. Internal & External Bead Removal + Cooling

Bead control is where "looks OK" becomes "acceptance-ready." Octal Pipe integrates internal/external scarfing aligned to the welding section, plus a controlled cooling zone to stabilize downstream sizing. This reduces extra grinding work and keeps ID/OD finish consistent-especially important when customers care about downstream coating, lining, or tight dimensional requirements.

6. Sizing Mill (tolerance control + shape capability)

Octal Pipe configures sizing to achieve repeatable geometry at production speed, not only at slow trial speed. The sizing section can be set up for round pipe, and (by tooling/setup) support square/rectangular tube production strategies when required. We also size this station to match upstream forming/welding speed, so it doesn't become the "quiet bottleneck" that reduces real throughput.

7. Flying Cut-off (cut-to-length at line speed)

Octal Pipe offers flying cut-off solutions configured to your product mix and plant preference, including cold flying saw options and hot flying cut-off options. The key is length control and stable synchronization with line speed-so you can hold cut accuracy without slowing the mill. This is one of the stations that directly affects shipping efficiency and downstream handling.

8. Run-out Table + Stacking & Packing Solution

We treat run-out and packing as part of production capacity, not an afterthought. We can supply run-out tables, transfer/collection, automatic stacking, bundling/packing options, and marking workflow integration. This reduces labor pressure, improves shipment consistency, and makes yard logistics smoother-especially in high-output mills.

This is where an "ERW mill" becomes a project-fit production system-the part that buyers feel in uptime, yield, and acceptance speed.

Coil Prep That Prevents Welding Drift

We prioritize coil prep stability (slitting accuracy, leveling, accumulator capacity, strip joining reliability). Fewer stops means your HF welding parameters stay steady, and the line reaches stable production faster.

Forming That Holds Edge Alignment

Forming is configured to protect edge alignment before the weld point-because misalignment silently increases repair rate. Depending on your size range and product mix, we recommend conventional forming, FFX, or DFT to match your changeover and product strategy.

HF Welding Configured for Your Thickness Window

We select solid-state HF power and set up the welding section (including impedance/guide control and squeeze behavior) to match your OD/thickness window-so you don't have to sacrifice speed just to keep seam quality.

Bead Removal + Normalizing Where Needed

Bead scarfing and optional online induction normalizing help keep OD/ID finish consistent and support tougher acceptance requirements. This is one of the quickest ways to reduce downstream grinding/rework in real production.

Sizing, Straightening, and Measurable Tolerance Targets

Sizing and straightening are configured to hit practical acceptance targets (OD tolerance, straightness, and shape control). The goal is not "tight on paper," but repeatable at your planned speed and shift schedule.

Acceptance Modules Without Killing Throughput

NDT and testing options (eddy current, UT, hydrotest) are chosen by your standard and customer acceptance level-then matched to line pace so QA doesn't become the station that collapses your designed capacity.

Contact now

FAQ













Q1: What is the difference between FFX and DFT in an ERW mill?

A: FFX improves size-range efficiency and reduces roll-set dependency; DFT is optimized for direct square/rectangular tube production.

Q2: What size range can an ERW tube mill cover?

A: The OD and thickness window is customizable and depends on forming, HF power, sizing, and your target standards.

Q3: What information is needed for a quotation and layout?

A: OD/WT window, product mix (round/square/rect), target standard, required testing scope, capacity plan, and workshop layout.
