Sucker Rods

Your Professional Sucker Rods Supplier

Octal Pipe is a professional and integrated supplier of oilfield products and industrial steel solutions based in China. With extensive experience in supply, distribution, and manufacturing, we specialize in providing a wide range of steel materials for the oil & gas, energy, and industrial sectors.

Why Choose Us

Superior Quality Assurance

Our steel pipes undergo rigorous testing and adhere to international standards, ensuring unmatched durability, corrosion resistance, and performance in extreme conditions.

Certificates

Every product is backed by full material traceability, mill certificates, and compliance with international standards such as API, ASTM, ASME, EN, and ISO.

Competitive Pricing

We deliver premium-grade steel pipes at reasonable costs, optimizing value through efficient manufacturing and supply chain management without compromising on quality.

Fast & Reliable Delivery

Leveraging efficient sea freight logistics and a global network, we ensure timely ocean shipping of steel pipes, minimizing delays and keeping your industrial operations on schedule.

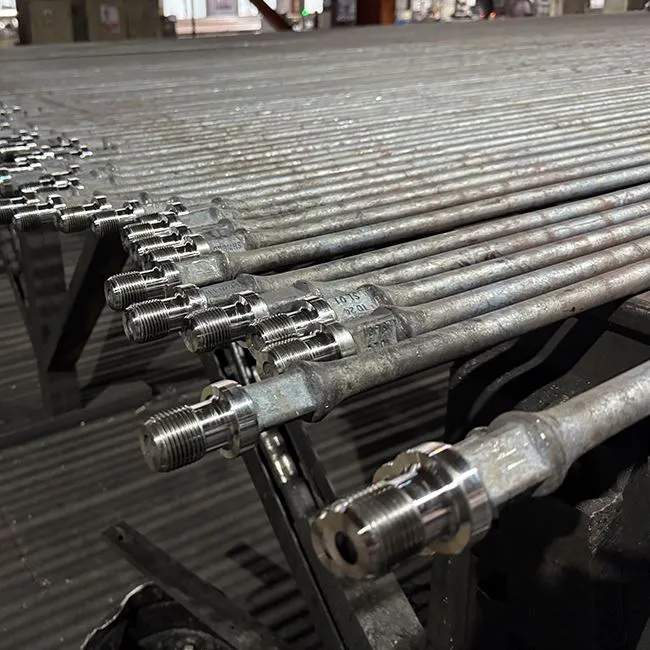

Sucker Rod

Standard	API Spec 11B Certified
Types	Steel rods, pony rods, polished rods, fiberglass rods
Sizes	OD 5/8″–1-3/4″, Length 2–30 ft
Grades	C, K, D, KD, HL, HY
Couplings	Class T / Class SM, wear-resistant options

Features

Various grade to fit different requirements.

Various types to satisfy different environments.

Angle steel and bolts package for convenient transport and saving space.

Plastic or metal sucker rod protectors to protect the threads.

Plastic paper and metal box to resist the corrosion and abrasion.

Special specifications can be customized.

Functions Of Sucker Rod

This rod plays a vital role in the artificial lift process, which brings oil or gas to the surface when the natural reservoir pressure is insufficient. Here are the primary functions:

Transmitting Power

These rods transmit the reciprocating motion generated by the surface pumping unit down to the downhole pump. This reciprocating motion creates the necessary suction and lifting action to bring fluids to the surface.

Supporting the Downhole Pump

Rods bear the weight of the downhole pump, ensuring it remains suspended at the desired depth within the wellbore integrity. They provide stability and control the vertical movement of the downhole pump assembly.

Withstanding High Loads

These types of rods are designed to withstand high tensile loads and torque during pumping. They must possess excellent strength, durability, and resistance to corrosion to ensure efficient and reliable oil and gas production.

Production

For common sucker rod:

Raw Material Test → Cold Straighten → Cut → Forge → Hot Treatment → Hot Alignment → Shot Blasting → Rod Head Machining → Assembly → Protective Cap → Package → Aczoiling Treatment.

For extra high tensile sucker rod:

Raw Material Test → Cold Straighten → Cut → Forge → Quenched And Tempered → Hot Treatment → Hot Alignment → Shot Blasting → Rod Head Machining → Surface Quenched → Assembly → Protective Cap → Package → Aczoiling Treatment.

Package and loading

Package:

Metal pallet for saving space and convenient to transport.
Plastic paper covering the sucker rod and metal box covering the rod head and then metal pallet for better corrosion and abrasion resistance.

Pallet size (L × W× H):

7930mm × 550mm × 330mm
8300mm × 550mm × 330mm
9440mm × 550mm × 330mm

Container size:

40' GP (40' general purpose container).
40' OT (40' open top container).

Dimension	Length Ft.	Pieces/ bundle	Net weight KG	Gross weight KG	Total pieces
5/8"	25'	150	1930	1938	1920
	26'	150	1945	1953	1920
	30'	150	2210	2218	1690
3/4"	25'	100	1850	1858	1345
	26'	100	1865	1873	1334
	30'	100	2120	2128	1174
7/8"	25'	80	1920	1925	1039
	26'	80	2012	2017	991
	30'	80	2290	2290	897
1"	25'	60	1915	1923	780
	26'	60	2006	2014	744
	30'	60	2278	2283	657
1-1/8"	25'	50	2044	2052	609
	26'	50	2135	2143	583
	30'	50	2392	2398	521f

Dimension	Length Ft.	Pieces/ bundle	Net weight KG		Gross weight KG		Total pieces
5/8"	25'	150	1930		1938		1920
	26'	150	1945		1953		1920
	30'	150	2210		2218		1690
3/4"	25'	100	1850		1858		1345
	26'	100	1865		1873		1334
	30'	100	2120		2128		1174
7/8"	25'	80	1920		1925		1039
	26'	80	2012		2017		991
	30'	80	2290		2290		897
1"	25'	60	1915		1923		780
	26'	60	2006		2014		744
	30'	60	2278		2283		657
1-1/8"	25'	50	2044		2052		609
	26'	50	2135		2143		583
ESRP-15		30'	50	2392		2398		521

Applications

The sucker rod is widely used in the oil extraction industries. The different grade sucker rod can be applied in different applications.

Grade C sucker rod

Moderate strength, has a certain degree of resistance to the sulfide stress cracking, it is suitable for sour environments.

Grade D sucker rod

The grade D sucker rod is manufactured from high quality heat treated steel alloy, which has high tensile and yield strength, it is can be used in the non-corroding or mildly corroding environments.

Grade K sucker rod

The grade K sucker rod has a good corrosion resistance in H2S, CO2, and NaCl media, it is widely used in corrosion environments.

Grade H sucker rod

This is a type of sucker rod with extra high tensile strength it is ideal for deep and large wells.

Company Honor

FAQ

Q: Are you original manufacturer or trading company?

A: We are an integrated corporation specialized in manufacturing and exporting.

Q: Which payment terms can you accept?

A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100% advance payment after purchase order by T/T for small orders.

Q: How is your delivery time?

A: This will depend on your purchasing quantity. Normally we can deliver 10-15 days.

Q: How can you ensure the quality?

A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.

As one of the leading sucker rods manufacturers and suppliers in China, we warmly welcome you to buy high-grade sucker rods for sale here from our factory. For customized service, contact us now.
