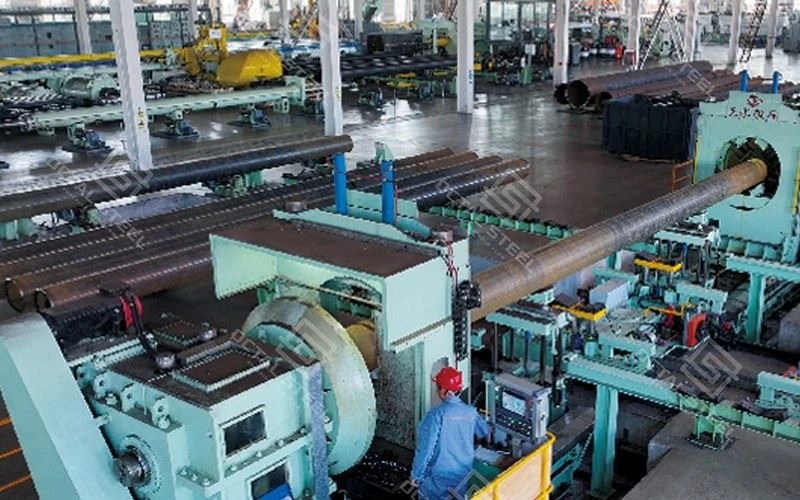

LSAW Pipe Production Line

An LSAW pipe mill is a long-term investment. When buyers look at a production line, they don't just ask "Can it make LSAW pipe?" – they care about size and grade range, stable quality, output per shift, automation level, digital control and operating cost. A good line gives consistent, API-compliant pipe with predictable efficiency; a poor line becomes a bottleneck and a maintenance burden.

Below is a supplier-side description of a modern JCOE LSAW steel pipe production line, based on the typical process shown in your flow diagram.

This LSAW steel pipe production line is designed for mills that need to supply large-diameter, heavy-wall pipe for cross-country pipelines and heavy structural work. With JCOE forming, double-sided SAW welding and full-length cold expansion, the line can be configured for API 5L line pipe, piling pipe or structural pipe, depending on your market focus.

Typical projects include long-distance oil & gas transmission lines, major water pipelines, offshore jackets and monopile foundations, and large onshore piles. The equipment and layout are customized around your target size range and annual tonnage, so you can reach competitive output without over-investing in unused capacity.

Engineering-led design, not just an equipment list
We start from your product mix, target standards (API/ASTM/EN/GB), tonnage and workshop conditions, then design the line around that-avoiding under-sized machines, over-investment, or bottlenecks between forming, welding, NDT and coating.

Integrated solution from pipe to coating
LSAW, SSAW, ERW, seamless and 3LPE/FBE coating lines are planned as one system with matched capacities and logistics, so you deal with one responsible supplier instead of coordinating several vendors and incompatible units.

Smart control and full QA traceability built-in
We integrate PLC/MES or SCADA so key parameters (welding, expansion, hydrotest, coating) are monitored and recorded per pipe, giving you real-time alarms, automatic reports and complete production + QA traceability for customer audits.

Faster start-up and lower project risk
You get a line that reaches stable, sellable production faster, with fewer breakdowns and less trial-and-error. To make that happen, we include process design, layout, installation supervision, commissioning and operator training, so you're not just receiving machines-you're getting a production system that can start generating cash flow in a much shorter time.

Life-cycle cost and upgrade in mind
You are not only paying for the line today, you are paying for its running cost over the next 10–15 years. We select key equipment with energy use, consumables, spare parts and downtime risk in mind, so your operating cost per tonne stays competitive. The line is also designed with clear upgrade paths for automation, new sizes and higher grades, so when your market changes you can adapt and expand instead of tearing everything out and starting again.

The diagram shows the complete JCOE LSAW steel pipe production flow, from plate to finished pipe ready for coating:

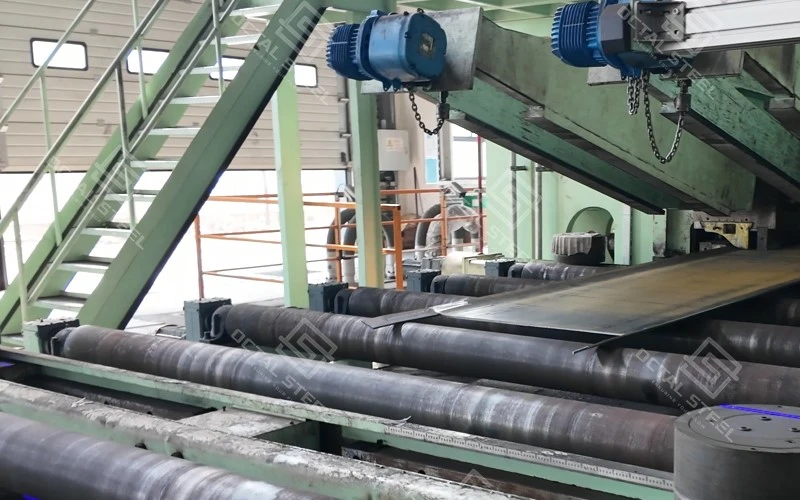

1. Plate preparation and UT inspection
2. Edge milling and edge pre-bending
3. J–C–O forming and tack welding

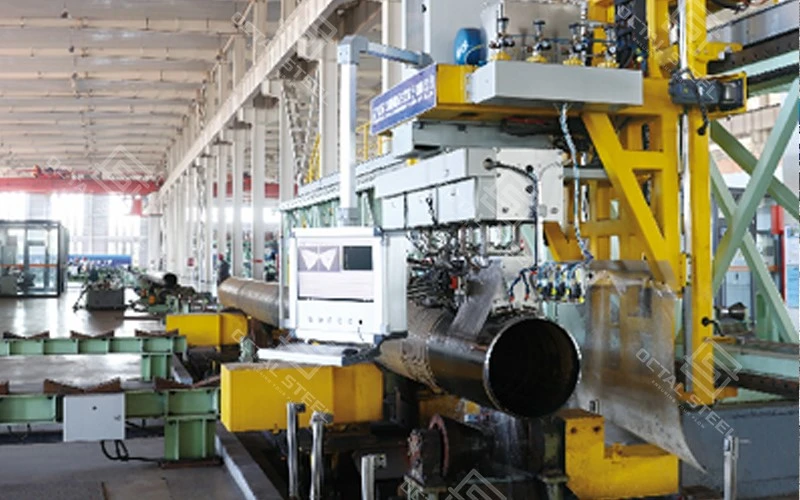

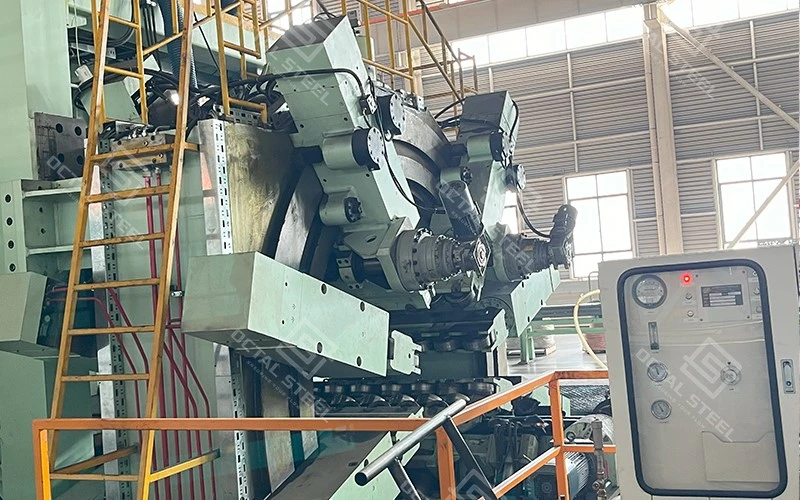

4. Internal and external multi-wire SAW welding
5. Online UT / RT inspection of the weld seam
6. Full-length cold expansion and straightening

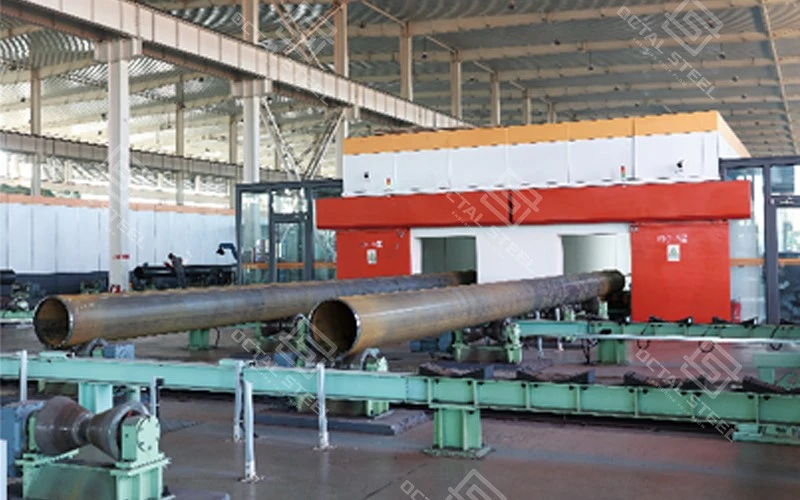

7. Hydrostatic testing and final NDT

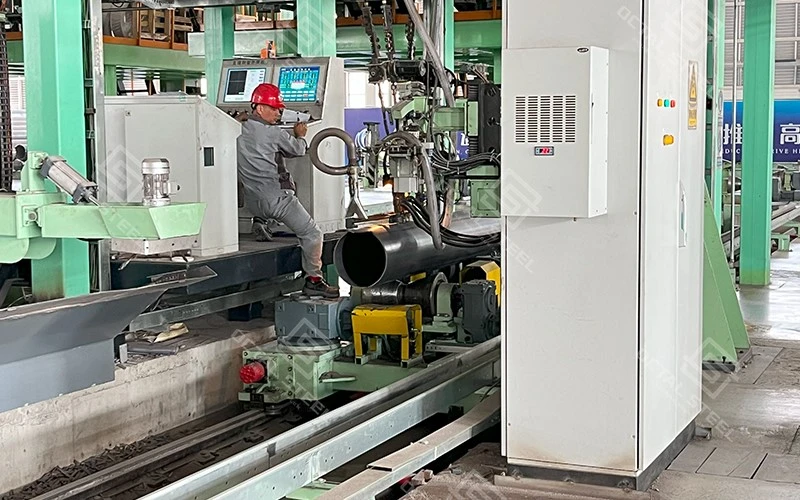

8. End beveling, measuring, weighing and marking
9. Transfer to painting or 3LPE/FBE coating and storage

Every investor has a different product mix, building and budget, so we don't offer a "one layout fits all" solution. The LSAW production line is configured around your target sizes, annual tonnage and existing workshop, so you get enough capacity without building an over-sized, hard-to-run mill.

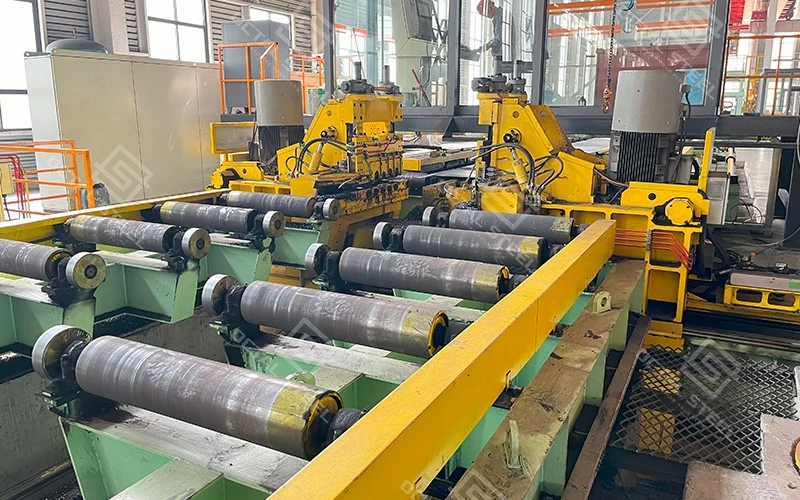

• Capacity choices

Typical designs range from 200,000 t/year up to 1,000,000 t/year, with forming, welding, expansion and testing speeds matched to each other. For example, a 300,000 t/year line may be designed for 8–10 pipes/hour, while a 700,000+ t/year line might target 18–22 pipes/hour, with SAW stations, expander and hydrotester all sized to keep pace.

• Layout flexibility – straight line, U-shape or parallel bays

We adapt the layout to your building and crane coverage.
For example:

1. In a straight-line layout, plate UT → edge mill → JCOE press → inside SAW → outside SAW → cold expander → hydrotest → beveling all follow one direction, ideal for a long, narrow bay.
2. In a U-shaped layout, the JCOE press and SAW welding are on one side of the workshop, and the cold expander + hydrotester run in parallel on the opposite side; pipes transfer across, so you reduce building length and crane travel distance.
3. Where you also have a seamless line, we can place the walking-beam reheating furnace and piercing mill in a separate hot-end bay, then share finishing, NDT and coating logistics with the LSAW line to save space and handling cost.

The idea is simple: use your existing buildings and crane rails as much as possible, and arrange equipment so material flows forward instead of zig-zagging and blocking cranes.

• Automation level – how many people per shift, doing what

We design the automation level to match your labour costs and management style:

1. A more manual line might need around 20–30 operators per shift across plate prep, forming, SAW, expander, hydrotest and finishing. Operators manually set many parameters and move pipes with overhead cranes more often.

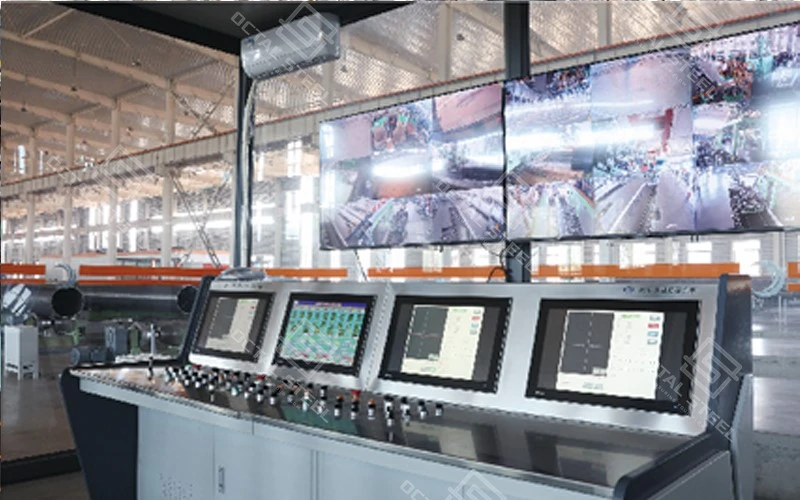

2. A higher-automation line can run with about 10–15 operators per shift, because more stations use automatic seam tracking, preset welding programs, automatic flux recovery, automatic pipe transfer trolleys, online UT with auto marking, and centralized control screens in a control room.

In both cases the product is API-compliant, but the per-ton labour cost, stability and ease of management are very different. We help you choose a level where your payback period and day-to-day operation make sense.

• Coating integration

When you also invest in a 3LPE / 3LPP / FBE coating line or painting line, we design the exit of the LSAW line and the entry of the coating line so pipes move by conveyor, transfer car or roller way directly into blasting and coating. This reduces yard handling damage, saves forklift/crane time, and allows you to run steel pipe and coating as one continuous production flow.

• China-based, close to the real pipe mills

We are based in China, where most of the world's large LSAW, SSAW and ERW mills are running. We work directly with local equipment makers and operating mills, so the line we design for you is based on proven Chinese technology, real production data and what actually works on the shop floor-not just a brochure design.

• Access to advanced yet mature technology

Chinese mills are running the latest JCOE presses, multi-wire SAW systems and digital welding/NDT control every day. We help you pick equipment and control systems that are both technically advanced and already field-tested in high-tonnage plants, so you don't become a "test site" for unproven solutions.

• Clear value for money, not just a low price

We are not trying to be the cheapest set of machines on paper. Instead, we combine reasonable CAPEX with lower hidden costs: better layout, fewer operators for the same output, less scrap and rework, easier QA and audits. For you, that means a line with a realistic payback period and a cost per tonne that can compete in your target market.

• Transparent investment and future upgrade path

From the beginning we show you different configurations-capacity, automation level, staffing, energy use-so you understand what you are paying for and what you can earn. The line is designed so you can upgrade later (more automation, higher grades, extra NDT or coating capacity) without rebuilding from zero, protecting your investment as your business grows.

Certifications



CE Certificate

ISO 9001 Certificate

API Q1 Certificate

ABS Certificate

AP-5L Certificate

API-5CT Certificate

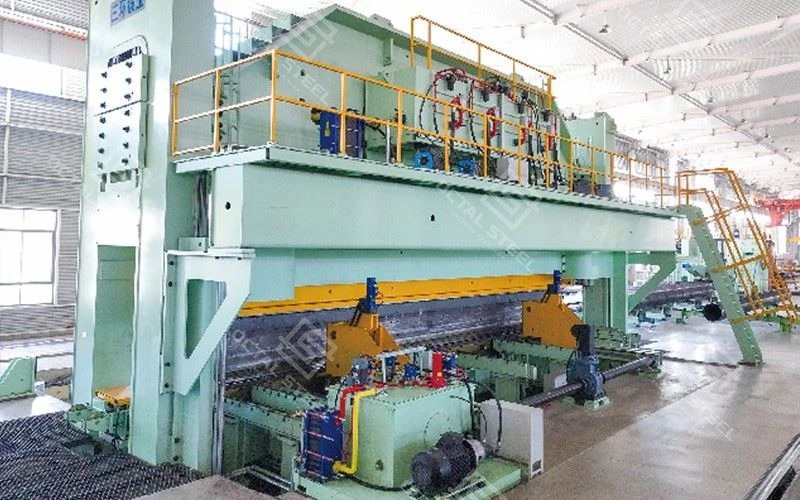

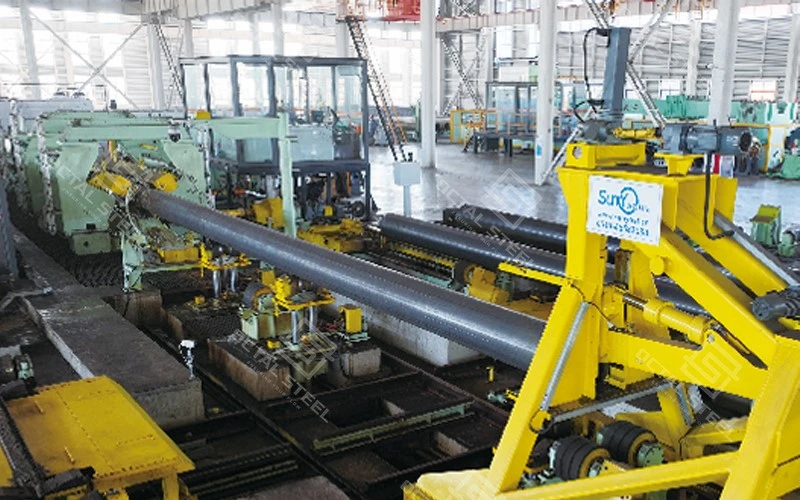

LSAW (JCOE) Steel Pipe Production Line

Key Technical Parameters (Customized Solution)

• Forming Process: J-C-O-E forming with double-sided multi-wire Submerged Arc Welding (SAW)
• Product Type: Large-diameter, thick-wall LSAW steel pipes for pipeline and structural applications
• Pipe Diameter Range (OD): 16"–56" (406–1422 mm)
• Pipe Length: Up to 12 m (fixed or random length)
• Applicable Standards: API 5L / ISO 3183 / GB/T 9711 (project-based customization available)
• Main Equipment Configuration:
• Edge milling & pre-bending → JCO forming machine → tack welding → inside & outside SAW → cold expansion → hydrostatic testing → UT/RT inspection → pipe end beveling & marking

Hot Tags: LSAW Pipe Production Line, China LSAW Pipe Production Line manufacturers, suppliers, factory
